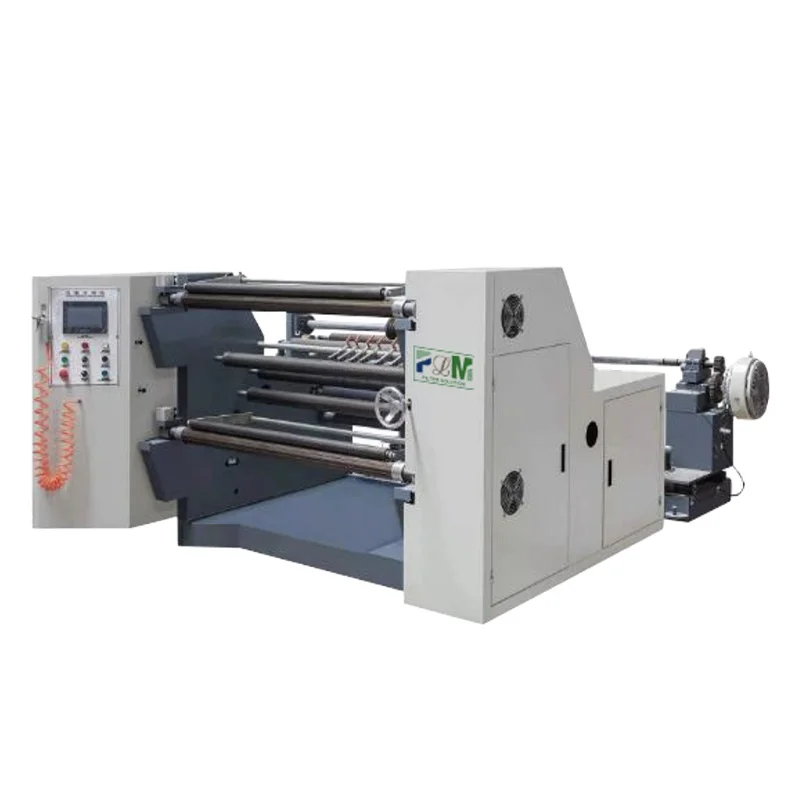

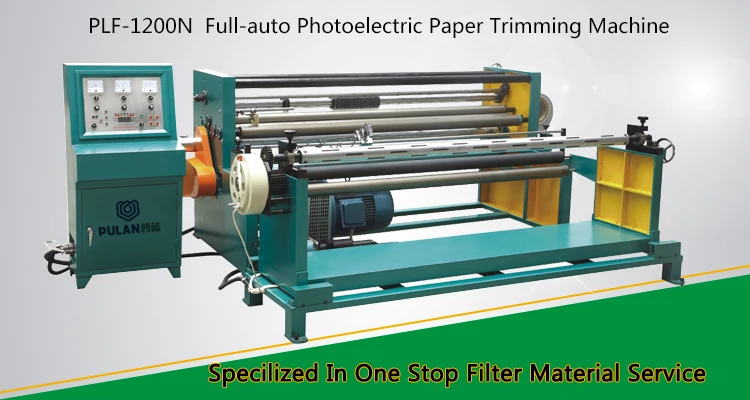

Full Auto Photoelectric Paper Trimming Machine Customzised PLF-1200N

Full-Auto Photoelectric Paper Trimming Machine Customzised PLF-1200N

Essential details

Condition:New Applicable Industries:Manufacturing Plant, Other

Weight (KG):1300 Showroom Location:None

Video outgoing-inspection:Provided Machinery Test Report:Provided

Marketing Type:New Product 2020 Warranty of core components:1 Year

Brand Name:PLM Warranty:2 years

Product name:PLF-1200N weight(KG):130

Motor power: 7.5KW Working air pressure: 0.6Mpa

Supply Ability

20 Set/Sets per Month

Packaging & delivery

Packaging Details WOODEN BOX

Port Tianjin

Lead time:

Quantity(sets)	1 - 1	>1
Lead time (days)	20	To be negotiated

Specification
1,Available cutting width:≤1200mm
2,coil delivery diameter:≤Φ1100mm(coil lD:Φ76mm)
3,coil recede diameter :≤Φ750mm(coil lD:Φ76mm)
4,coil revert speed:≤90m/min

5. Available cut width range: 40mm-1200mm

6. Trim torralance: ±0.5mm

7. Motor power: 7.5KW

8. Working air pressure: 0.6Mpa

9. Power supply: 380V/50HZ

10. M/C weight: 1300kg

11. M/C dimension: 2200×2250×1250mm(L×W×H)

Features

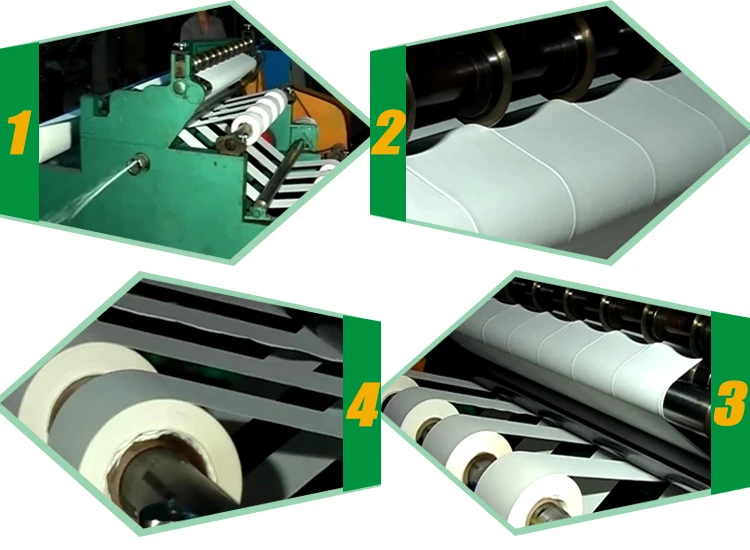

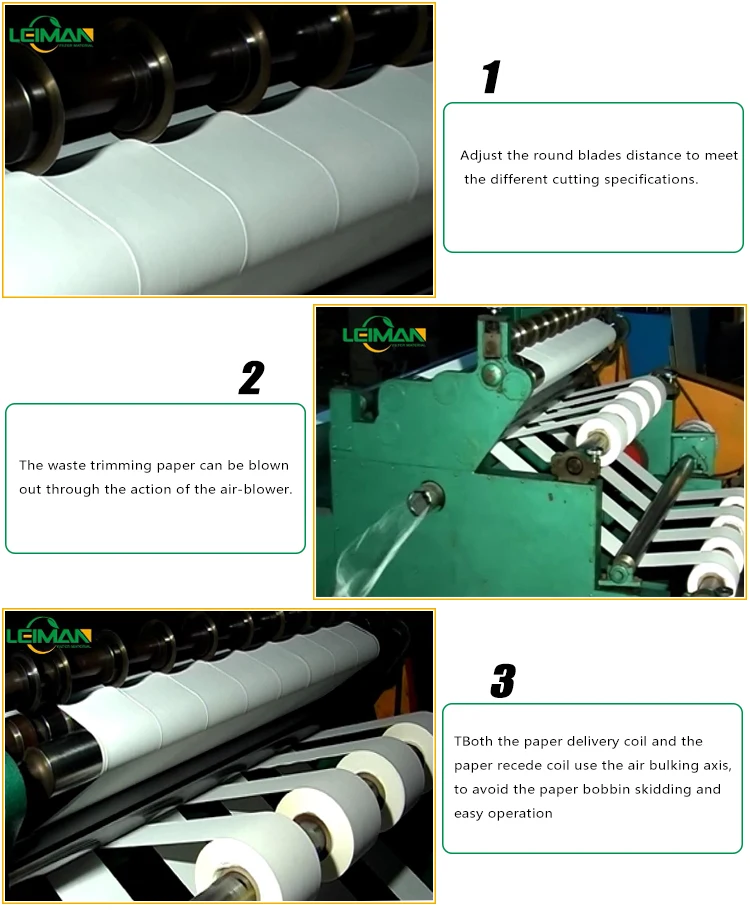

1. Adjust the round blades distance to meet the different cutting specifications.

2. The cutting speed is steep less regulated by motor.

3. The coiling speed synchronizes with cutting speed through the magnetic powder clutch, meanwhile maintaining the appropriate tensile force.

4. Adjusting the magnetic brakes on the paper delivery coil to keep the certain tightness between papers.

5. Both the paper delivery coil and the paper recede coil use the air bulking axis, to avoid the paper bobbin skidding and easy operation.

6. The waste trimming paper can be blown out through the action of the air-blower.

7. This machine has the automatically meter counting and reverting system.

8. This machine equips the photoelectric trimming device to make the paper cut much more precisely.

This machine is specially designed and used for cutting the filter paper and the non-woven of the panel air filter, cabin filter and fuel filter.

The cutting machine can be made according to customers’ specifications.
